Bendable LED Aluminium Lighting Channel Kit

Bendable LED Aluminium Lighting Channel Kit

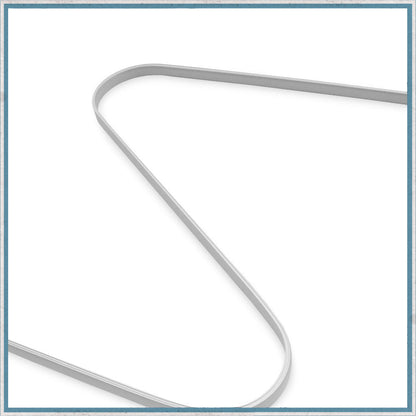

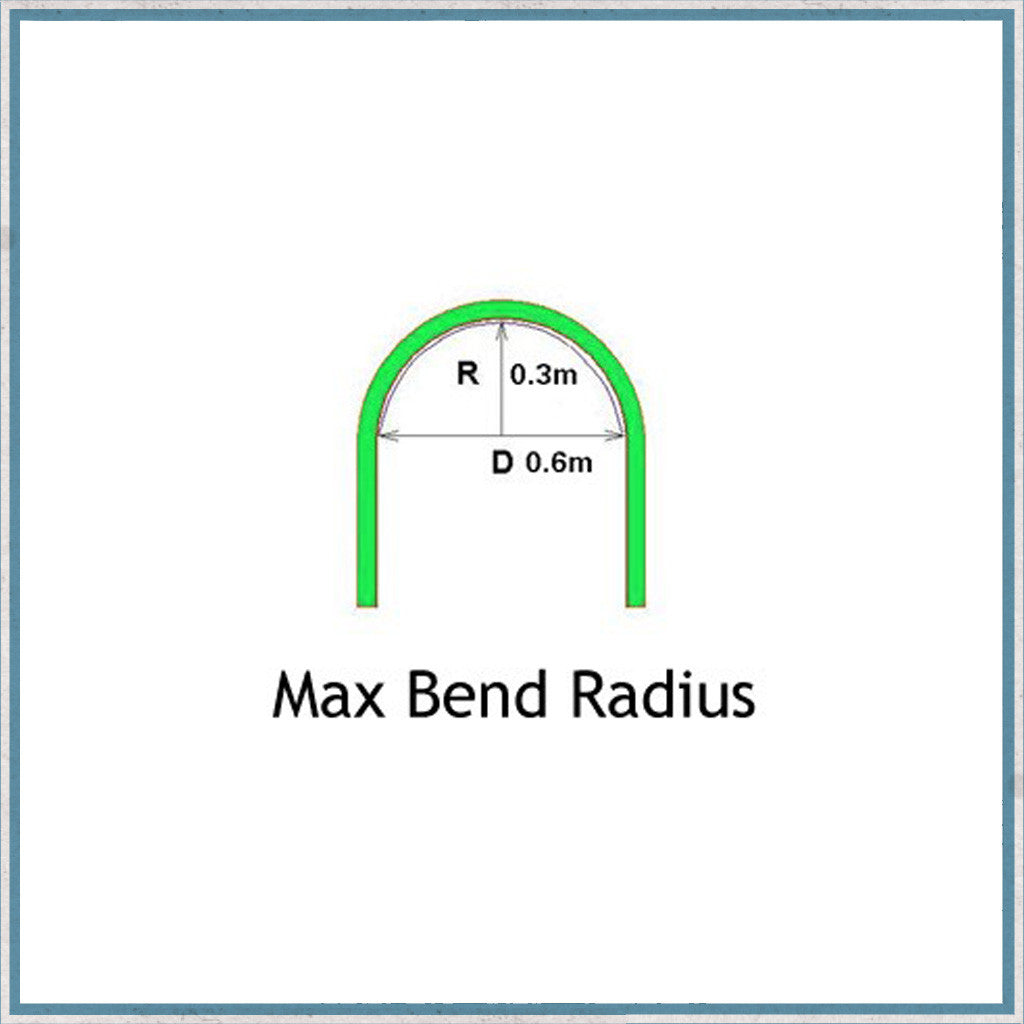

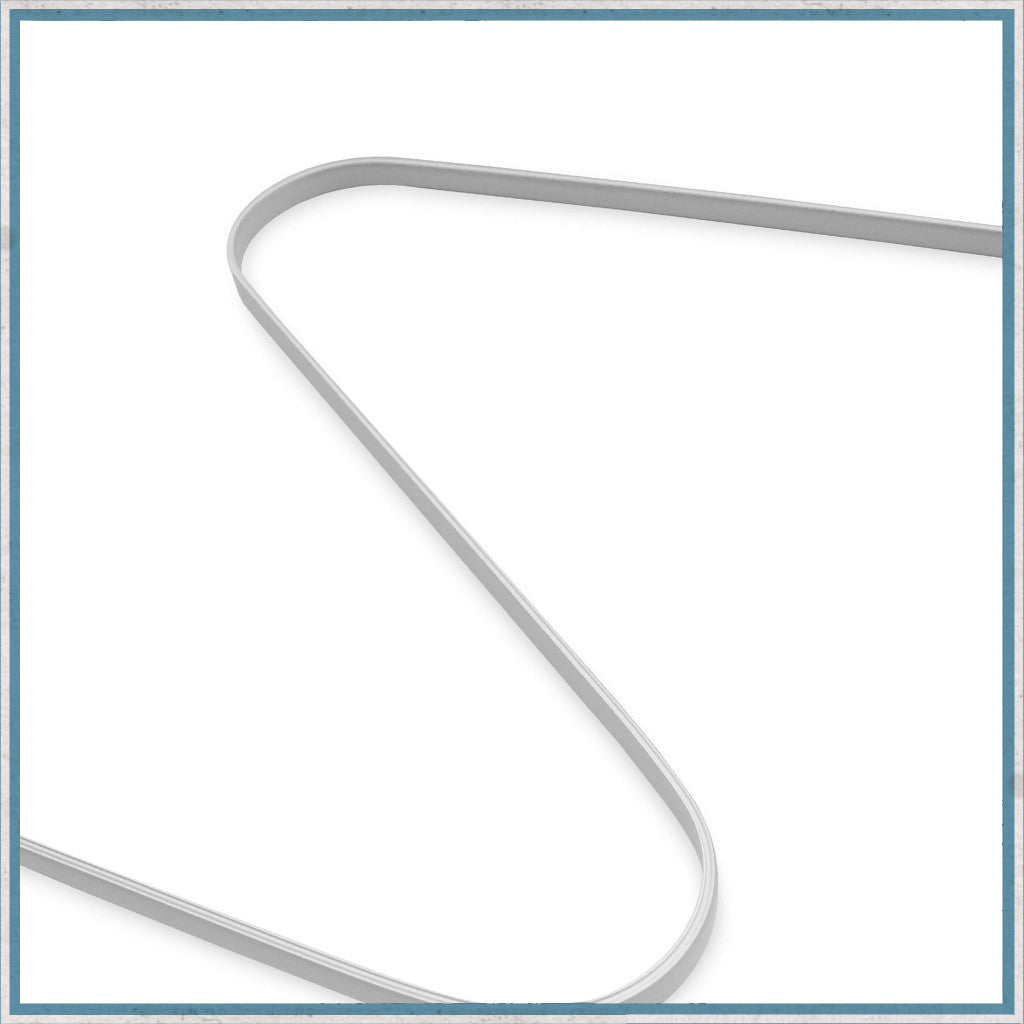

This Bendable Anodised Aluminium Channel can be formed around curved surfaces and panels, opening up countless possibilities to design lighting into curved areas, within a Camper Van, Motorhome or Caravan.

Each channel is supplied as a kit of parts to accept a length of LED Strip lighting (sold separately)

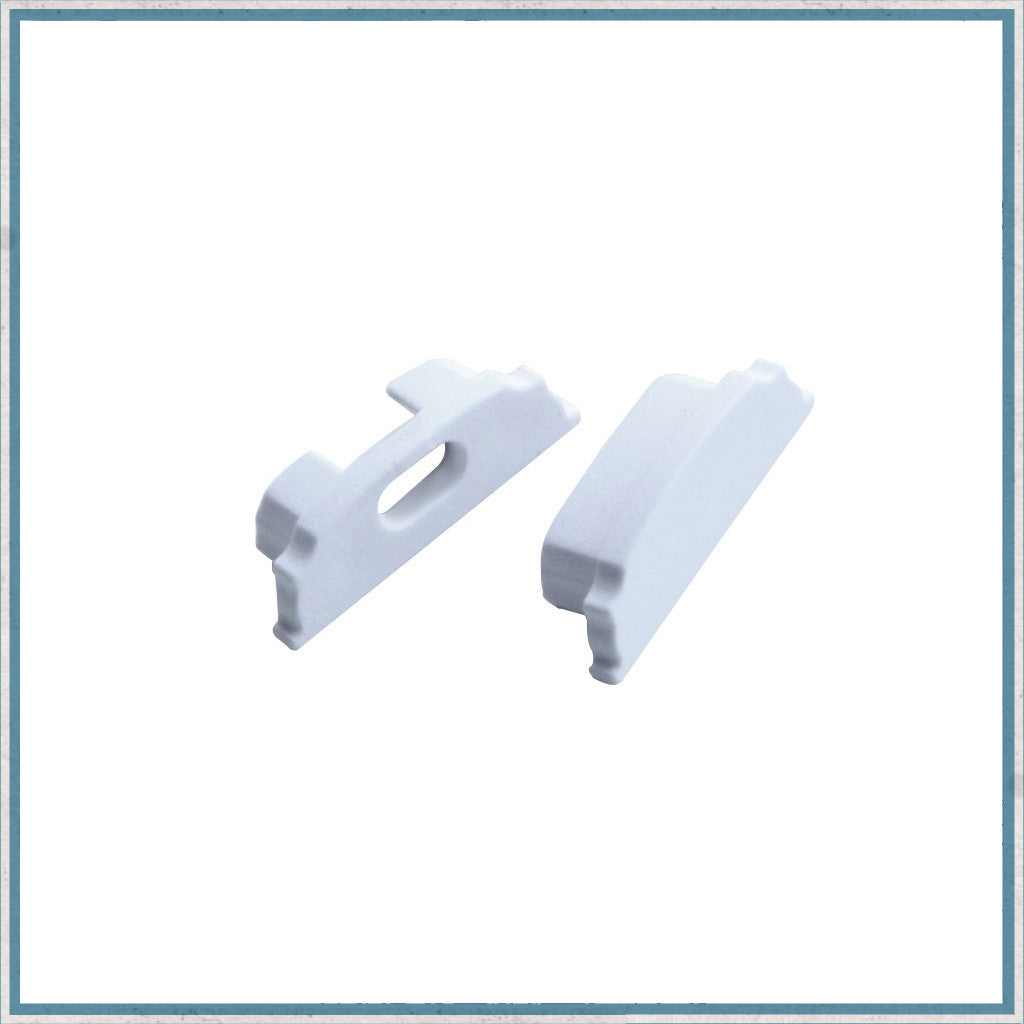

Each kit includes a length of Channel and a Diffuser together with end 2 end caps per metre length. So the 1 metre kit comes with 2 end caps and then 4 end caps with the 2 metre kit. Additional pairs of end caps can be bought separately if you want to make 2 or more shorter units from your chosen kit.

The aluminium housing and its plastic diffuser can simply be cut to size, depending on what length of lighting you need. This can be screwed directly onto a flat surface, by drilling holes in the back of the channel, or by using the mounting brackets, available separately. Your length of LED strip is attached using it's double sided tape, with the power cable passed through the end cap, the caps and diffuser can then be pushed into place.

The channel also acts as a heat sink for the LED tape as well, which in turn will increase the LEDs lifetime as well as slowing down any brightness degradation over time.

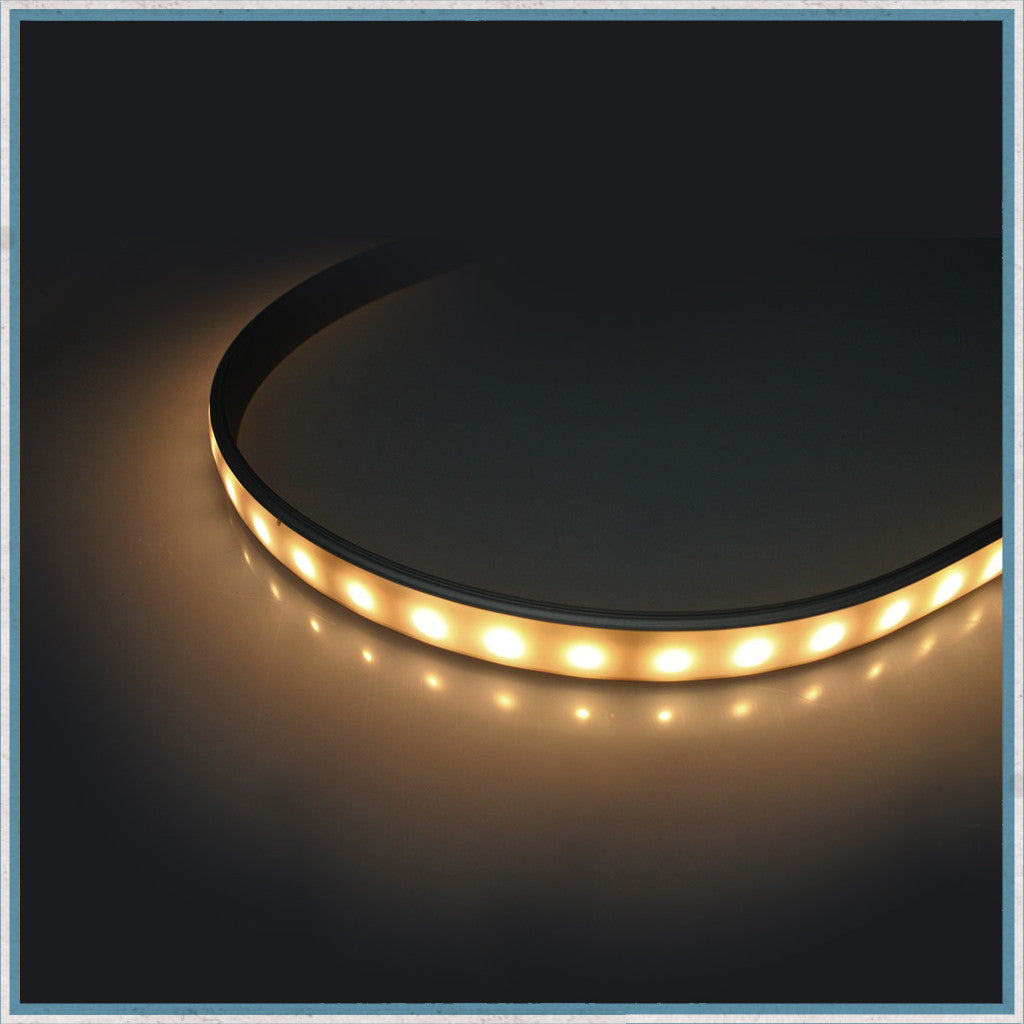

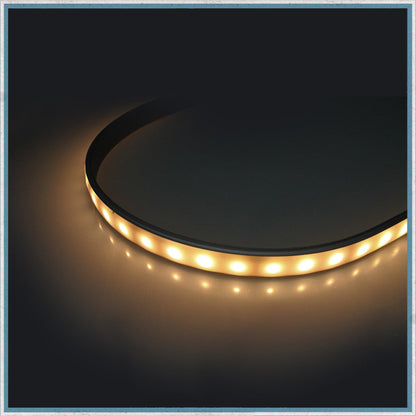

Available with a frosted diffuser which helps diffuse the light from each LED in a much more uniform pattern and also prevents any glare or secondary refraction from occurring.

This product is made from fully anodized aluminium and is corrosion proof; meaning its ideal for using outdoors as well as indoors.

Kit Specification

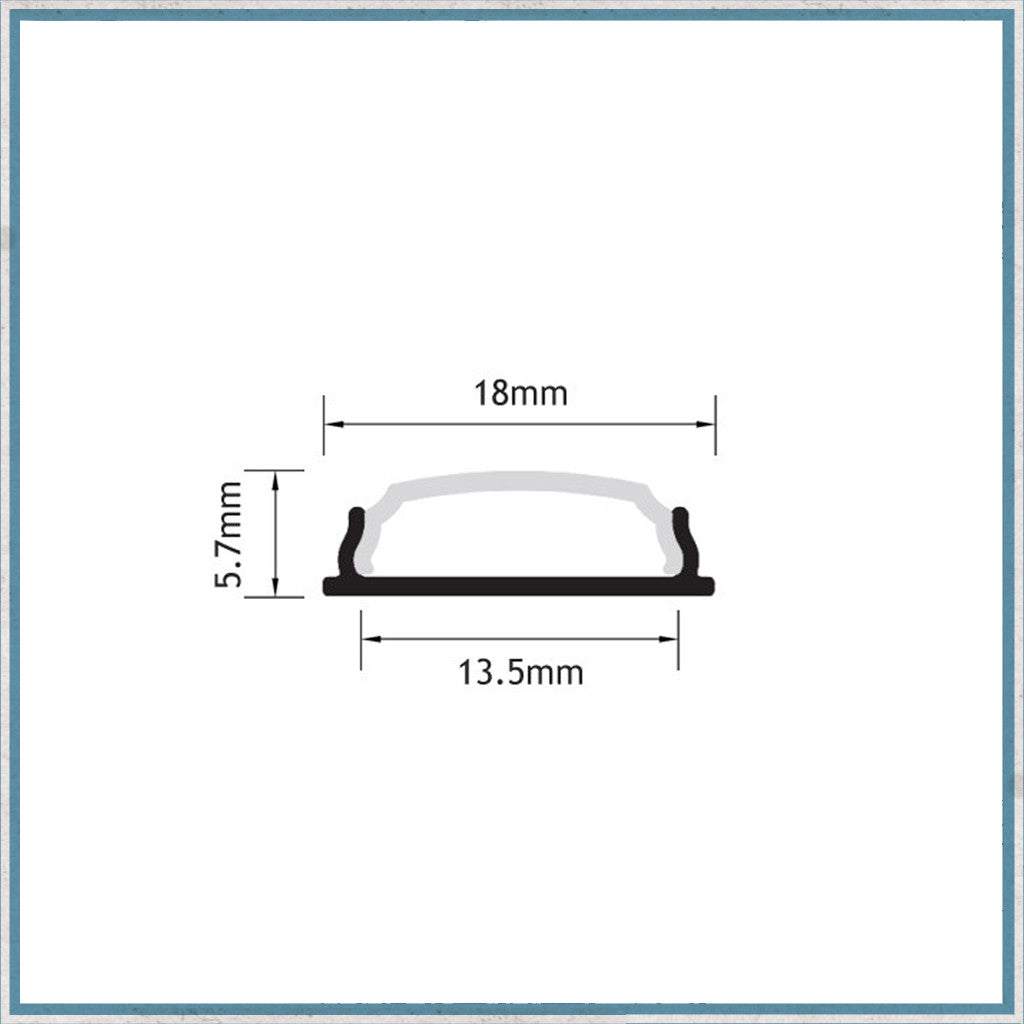

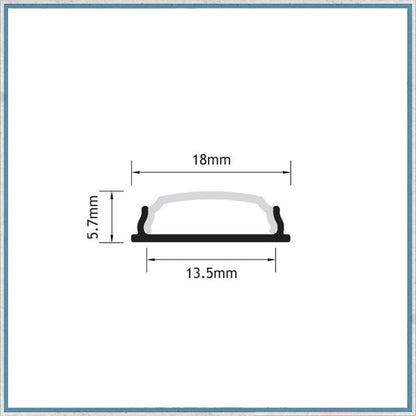

Bendable channel profile size: 18mm x 5.7mm

1 length of aluminium channel

1 length of Frosted Diffuser

2 End caps per metre length

No Brackets included in the kit price.

Note: This kit does not include any LED tape.
