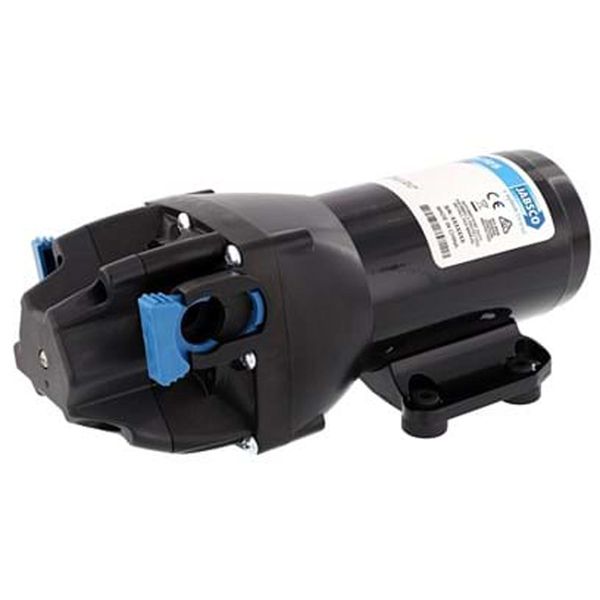

Jabsco Par-Max HD4 Freshwater Delivery Pump (12V / 15lpm / 25psi)
Jabsco Par-Max HD4 Freshwater Delivery Pump (12V / 15lpm / 25psi)
Couldn't load pickup availability

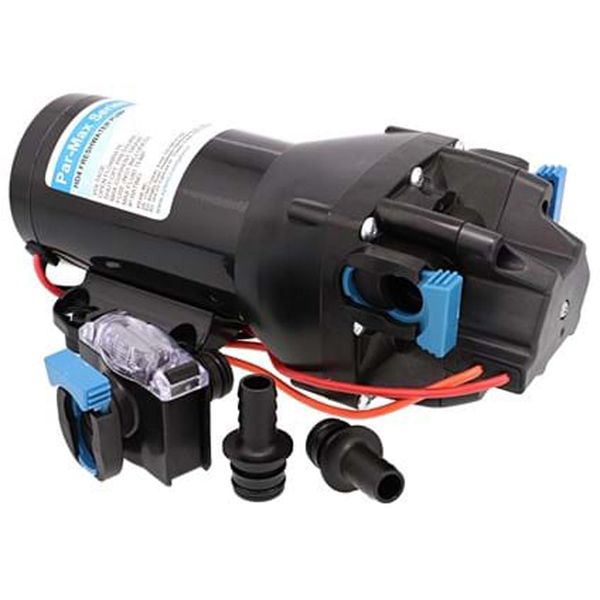

The Jabsco Par-Max HD4 Freshwater Delivery Pump is a reliable and efficient pump designed for serving multiple outlets, making it perfect for various applications such as washdown, livewell circulation, and more. Its multi-diaphragm design allows for a self-priming capability of up to 2.4m vertical lift and can operate without damage when running dry. With a high flow output, this pump is a great choice for those in need of a new drinking water pressure pump. It also comes with a 40-mesh inline Quick Connect strainer for added convenience. Upgrade your water systems with the Jabsco Par-Max HD4 Freshwater Delivery Pump.
Key Features
Heavy Duty, Coated Motor
Integrated Sealed Pressure Switch
Efficient, quiet operation
Self‐priming
Runs Dry without Damage
Quick Connect Ports
Noise Dampening Baseplate
Thermal Motor Protection (TCO)
| Brand | Jabsco |
| Series | Par-Max HD4 |
| Accumulator Recommended | Yes |
| Dimensions | Distance between mounting hole centres: 50mm x 90mm (2" x 3.6") |
| Hose Size | 13mm / 1/2" |
| Maximum Pressure | Inlet: 30 PSI (2.1 Bar) |
| Model | Q401J-112S-3A |
| Replaces | Jabsco 31620‐0292, 32600‐0092, 82400‐0392, 82500‐0392 & 82600‐0392, WP-014 & 509736. Closest Alternative for Jabsco 52600-0292 PAR-Max 7 Pump |
| Self Primes up to | 2.4 Metres (7.9 Feet) |
| Wire Size | 2.5mm2 (14 AWG) |
| Inlet Outlet | Fittings for 13mm (1/2") ID hose |
| Voltage Description | 12V DC |
| Amps Description | Maximum: 8A (at 25 PSI / 1.7 Bar) |
| Length | Pump: 239mm (9.4"), Cable: 305mm (12") |
| Height Description | 97mm (3.8") |
| Width | 109mm (4.3") |
| Material | Upper Housing*: Fibre reinforced polypropylene, Lower Housing: Cast Aluminium, Check Valve Retainer*: Polypropylene, Diaphragm*: Santoprene, Check Valves*: EPDM, Switch diaphragm*: EPDM, Bypass Diaphragm*: EPDM, PH Seals*: EPDM, PH Fasteners: Stainless Steel, Baseplate: Plastic & rubber feet, Motor Casing: Cast Aluminium; Coated Steel. (*in contact with water) |
| Fuse | 15A (Not Included) |
| Temperature Range | Ambient: 0°C ‐ 60°C (32°F ‐ 140°F), Fluid: 0°C ‐ 60°C (32°F ‐ 140°F) |
| Flow Rate Description | 15.1 LPM (4 US GPM) |
| Approvals | CE - EMC/EMI, EN 60945 (Marine) EN 61000-6-3 (residential, commercial, & light industrial) EN 55014-1 (Household appliance, electrical tools, & similar products), RCM, WEEE, RoHSII, ISO8846 Marine (Ignition Protected) |
| Cut Out Pressure Description | 25 PSI / 1.7 Bar |
| Warranty | 3 Years |
